VARCO 3D Bridge for Blender

2026-03-19 · tutorial

This guide explains how to install and get started with the VARCO 3D Bridge for Blender.

With the bridge plugin, you can move your workflow from VARCO 3D Studio into Blender more smoothly and reduce manual setup along the way.

The process is simple:

  1. Download the Blender bridge plugin from VARCO 3D Studio
  2. Install the plugin in Blender
  3. Enable the add-on
  4. Connect Blender to VARCO 3D Studio
  5. Export your assets from VARCO 3D Studio to Blender

Installation

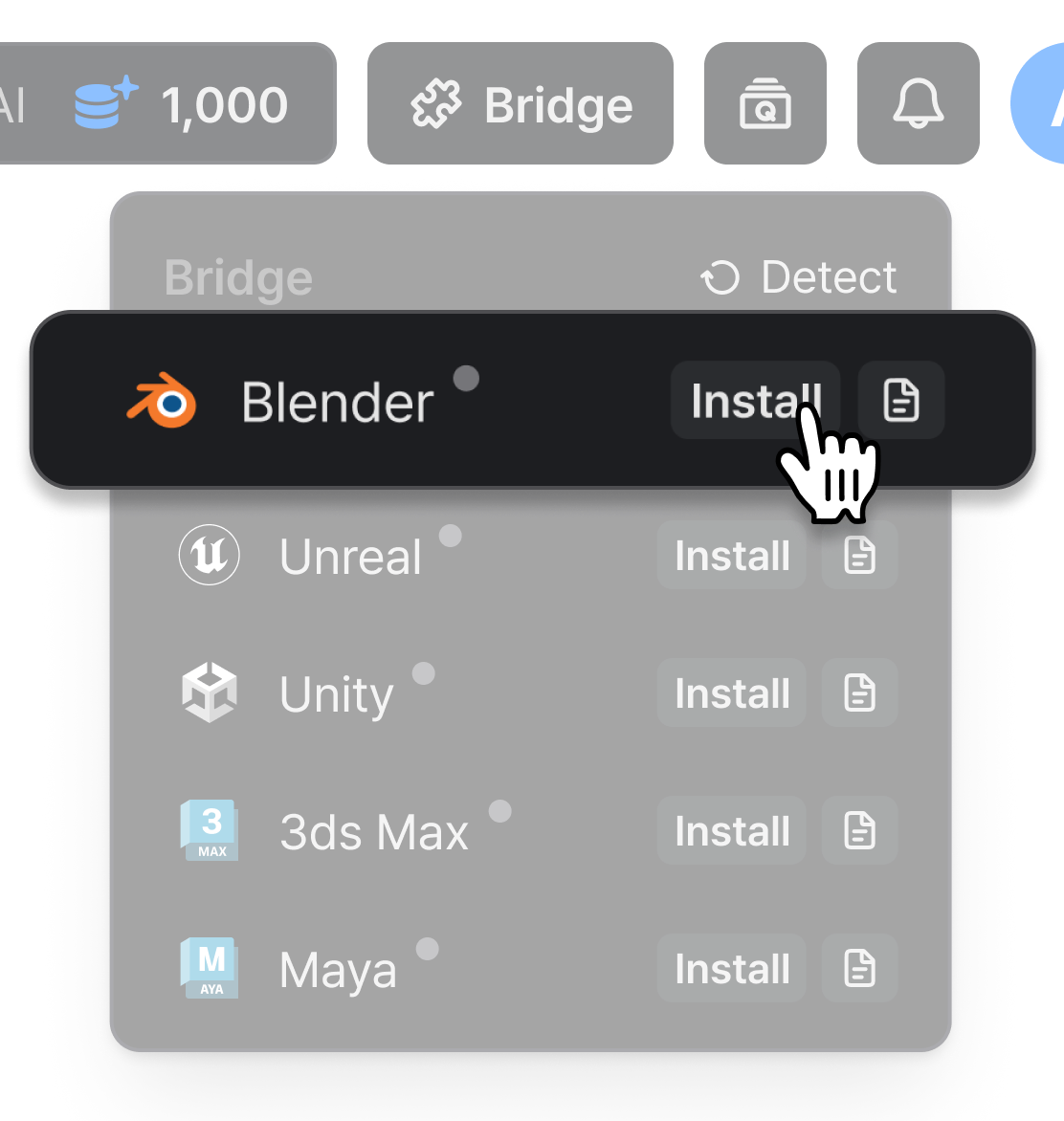

Step 1. Download the Blender bridge plugin from VARCO 3D Studio

In VARCO 3D Studio, click the Bridge button to open the bridge popup. From there, locate Blender in the list of available integrations and click Install to download the Blender bridge plugin.

The downloaded file should be named varco3d-bridge-blender.zip. Keep the file as a ZIP archive after downloading. You do not need to extract it manually before installation.

Install plugin file from VARCO 3D

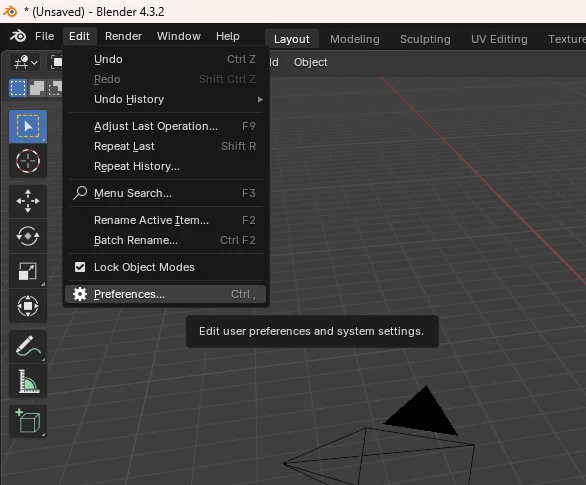

Step 2. Open Blender Preferences

Launch Blender, then open the preferences panel by going to Edit > Preferences….

This is where Blender allows you to manage add-ons, install external tools, and enable new workflow extensions.

Open Blender Preferences

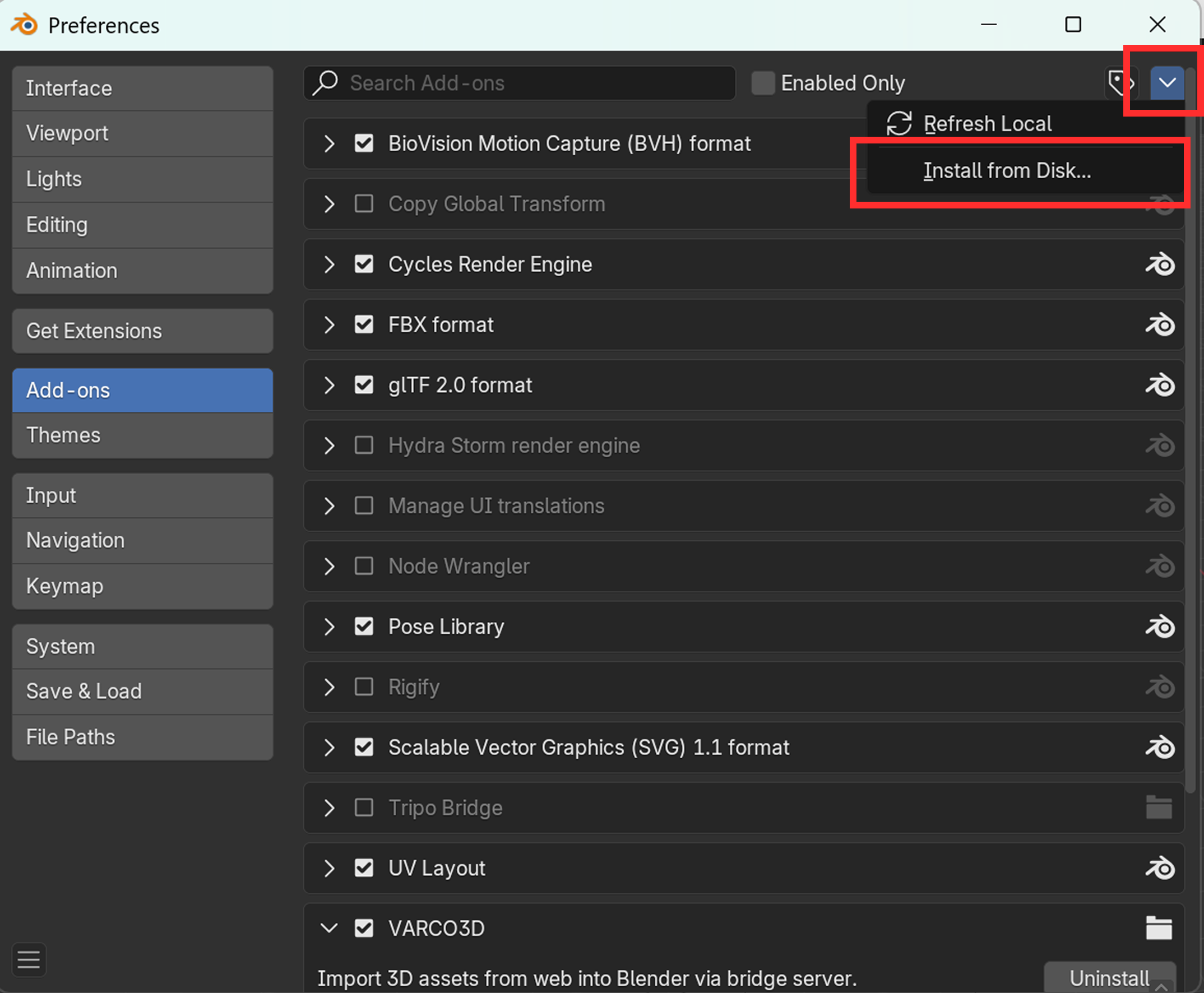

Step 3. Go to Add-ons and choose Install from Disk

In the Preferences window, open the Add-ons section. Then click Install from Disk… to install the plugin file you downloaded from VARCO 3D Studio.

Open Add-ons and Install from Disk

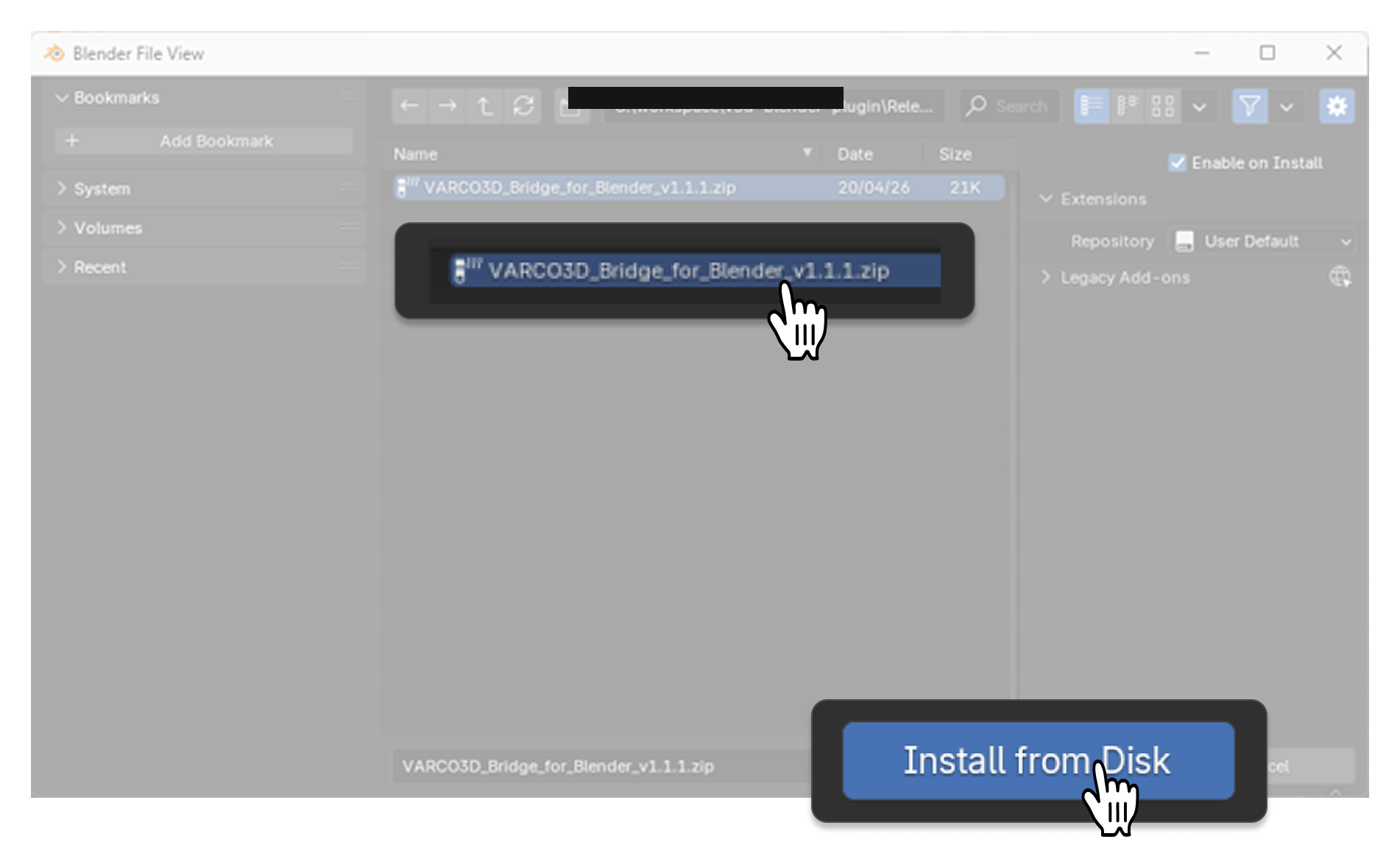

Step 4. Select the downloaded plugin ZIP file

Choose the downloaded file named varco3d-bridge-blender.zip, then click Install from Disk.

Blender installs the add-on directly from the ZIP file, so there is no need to unzip it beforehand.

Select varco3d-bridge-blender.zip

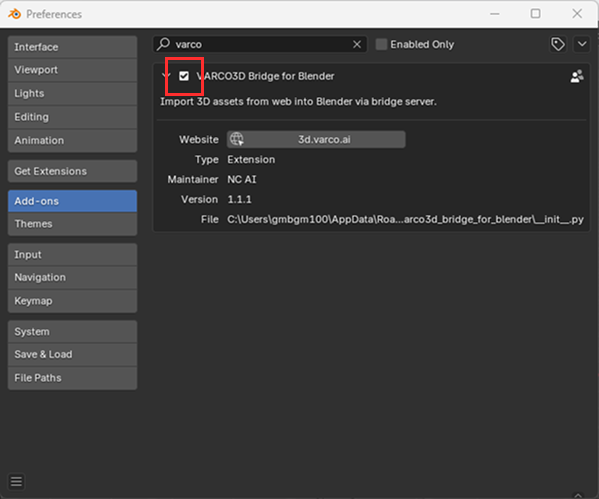

Step 5. Enable the installed add-on

After installation is complete, search for VARCO 3D in the add-on list. Once you find it, check the box next to the add-on name to enable it.

After it is enabled, the bridge plugin will be available inside Blender and ready to use.

Enable the installed add-on

Usage

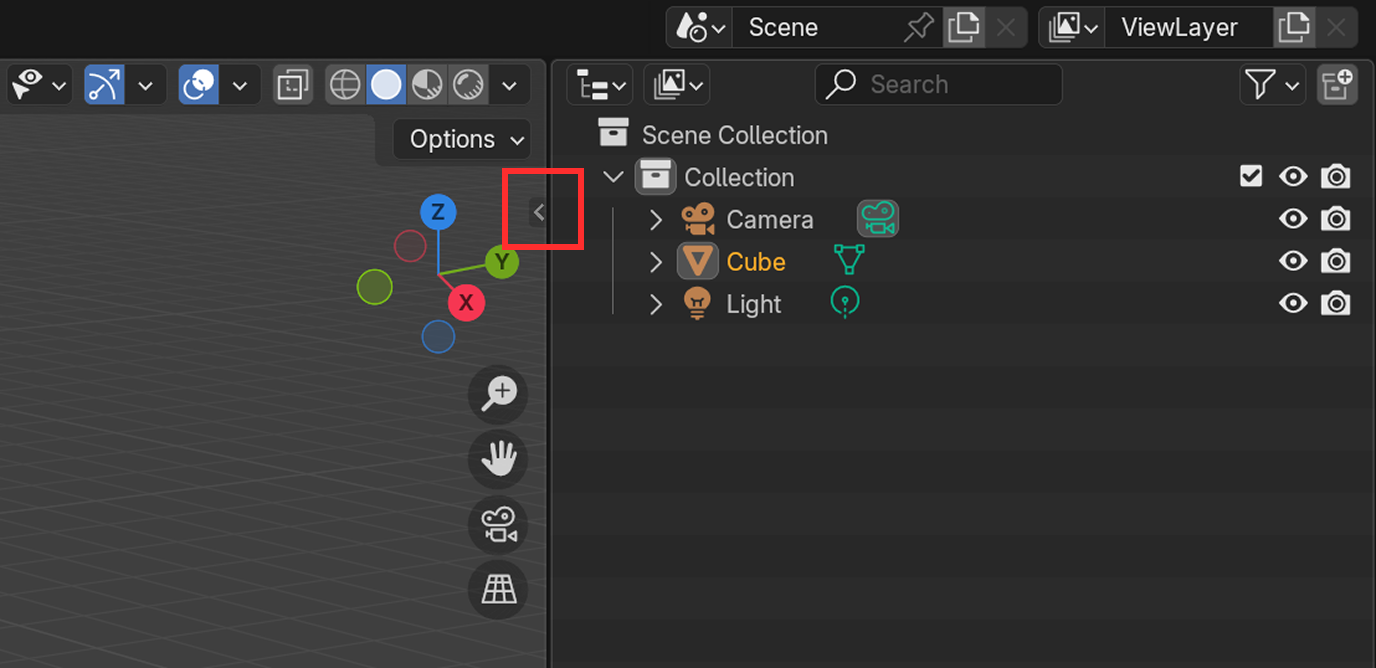

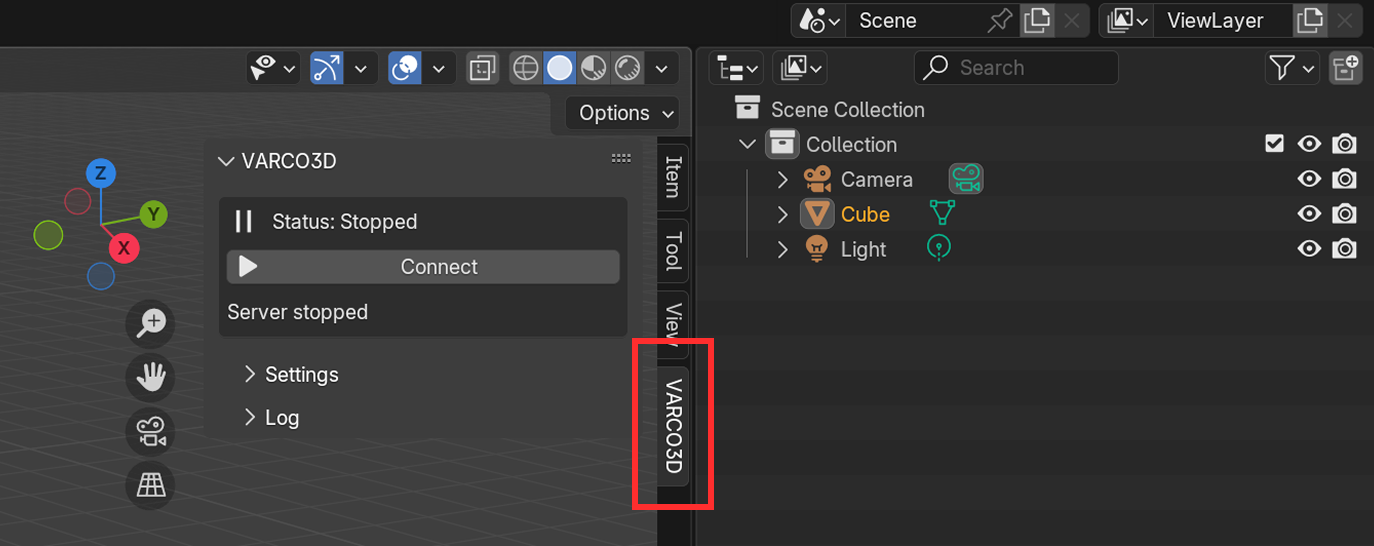

Step 1. Open the VARCO 3D panel from the sidebar

In Blender, open the sidebar and select VARCO 3D.

This opens the plugin panel, where you can connect Blender to your VARCO 3D Studio workflow.

Open the VARCO 3D Bridge panel - View 1 Open the VARCO 3D Bridge panel - View 2

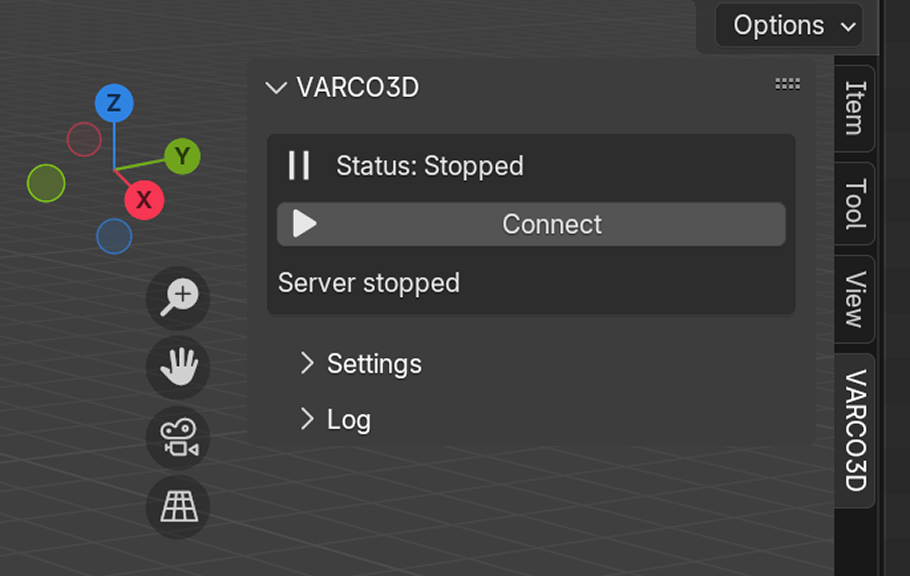

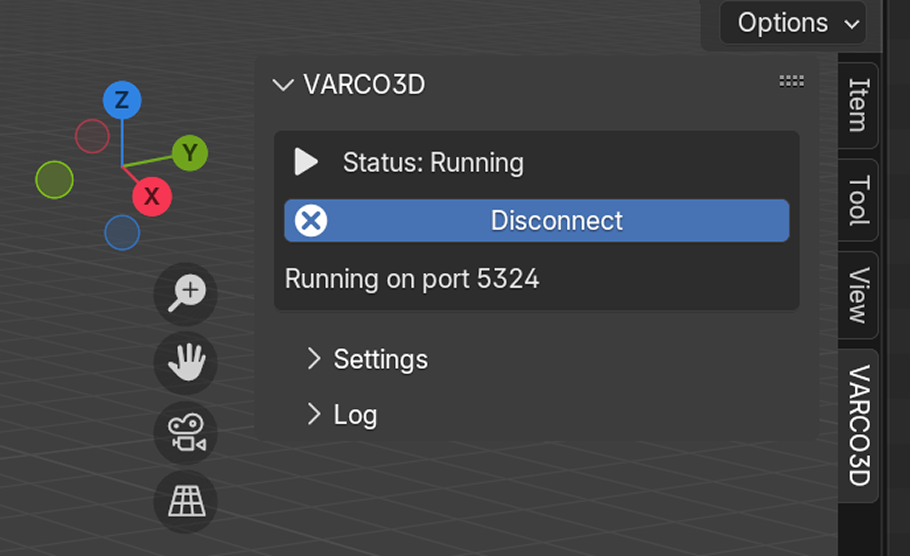

Step 2. Click Connect

In the VARCO 3D panel, click Connect.

This starts the local bridge connection required for sending your VARCO 3D assets into Blender. Once the connection is established, the Connect button in Blender will change to a blue Disconnect button.

Make sure this change is visible in Blender before moving to the next step.

Click Connect - View 1 Click Connect - View 2

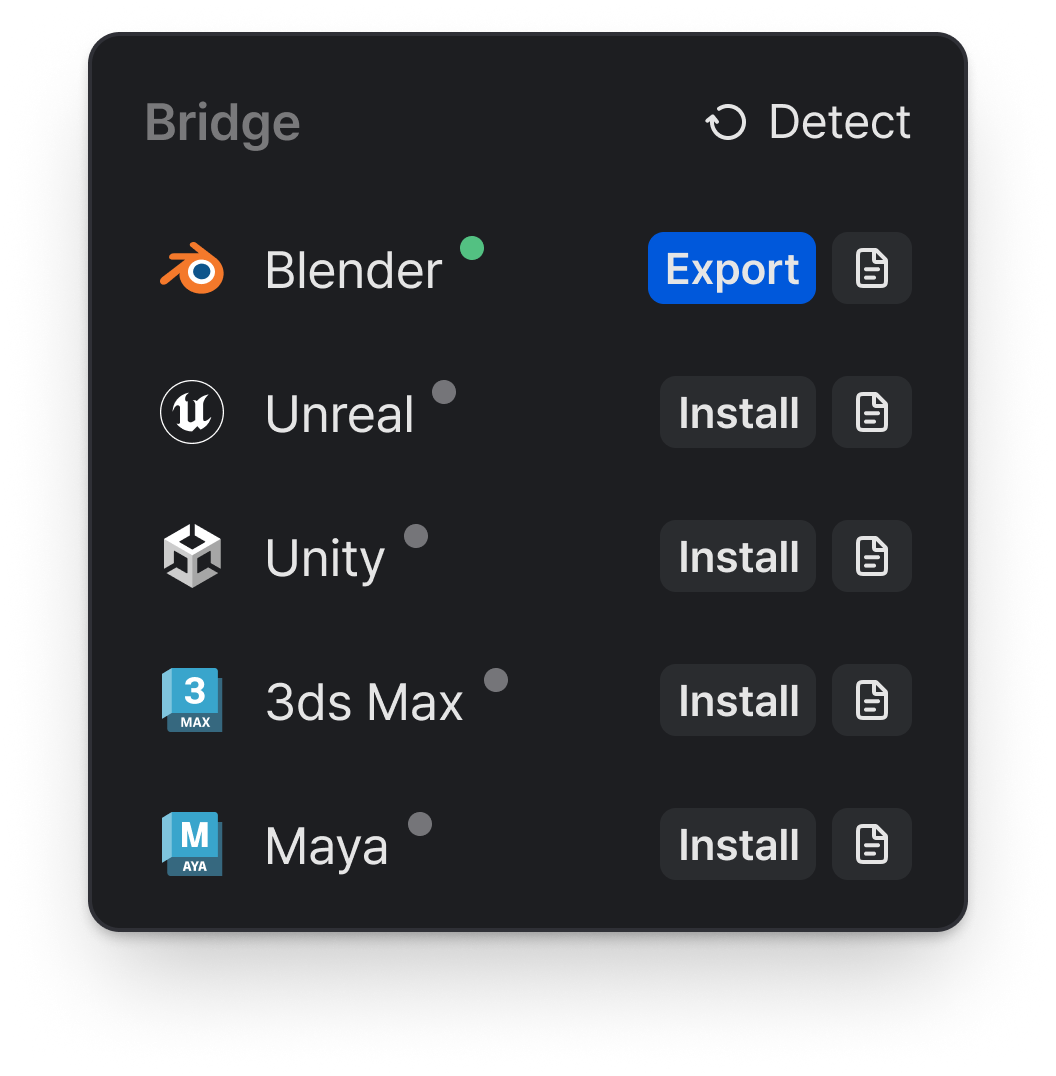

Step 3. Confirm the connection status in Studio

After connecting in Blender, return to VARCO 3D Studio and open the Bridge popup.

When the connection is detected successfully, the status dot in the popup will turn green. This indicates that Blender is connected and ready to receive data from VARCO 3D Studio.

If the dot does not turn green, click Detect in the bridge popup to refresh and check the connection again before proceeding.

Connection status turns green when connected

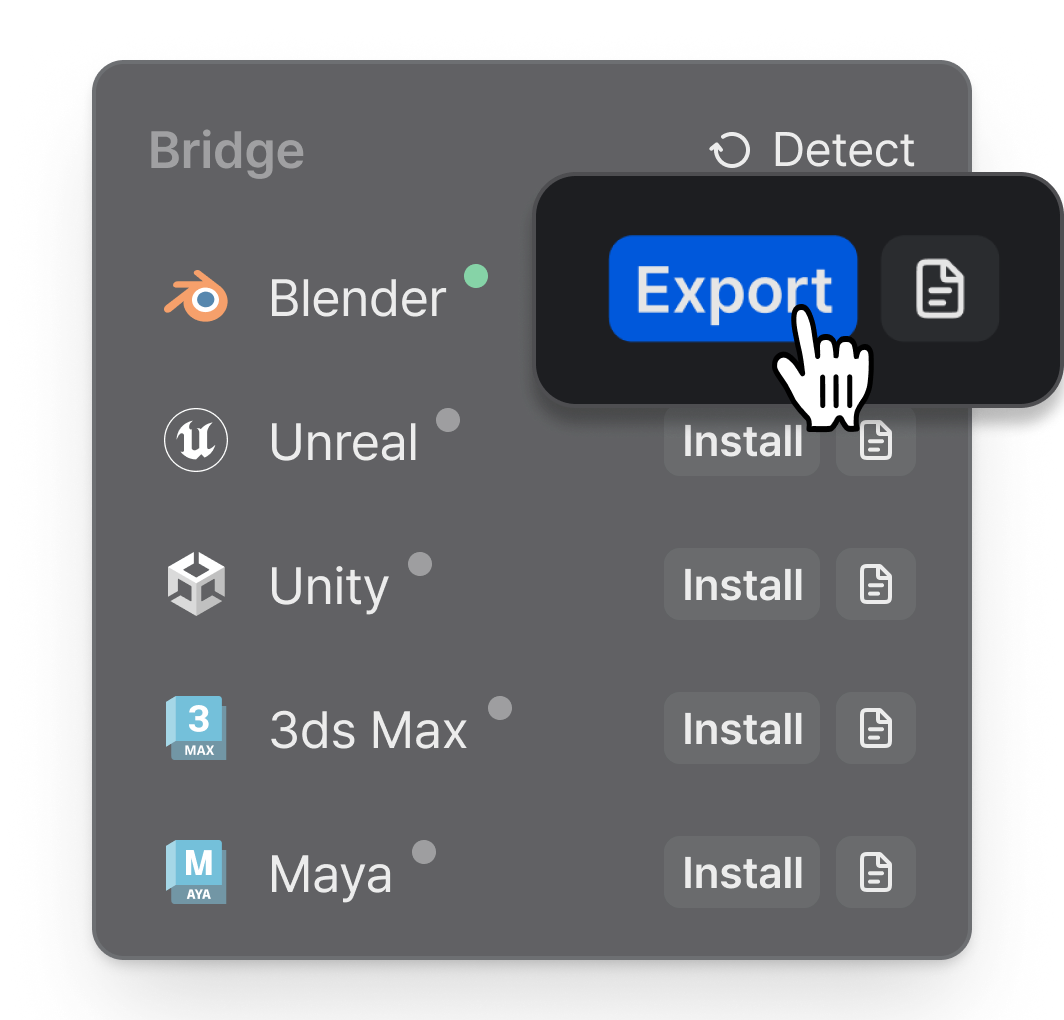

Step 4. Export your VARCO 3D assets to Blender

Once the connection is detected, the Export button will become available in the bridge popup.

Click Export to send your assets directly to Blender through the bridge. This makes it easier to continue editing, shading, or refining your work in Blender without going through extra manual import steps.

Export VARCO 3D assets to Blender

Step 5. Confirm the export is complete

If the export is successful, you will see a notification like this.

This means your assets have been sent to Blender successfully and are ready to use.

Export success notification

You’re all set to continue your workflow in Blender. Enjoy creating with VARCO 3D.
